Bent Glass for Modern Facades, Railings & Specialty Architecture

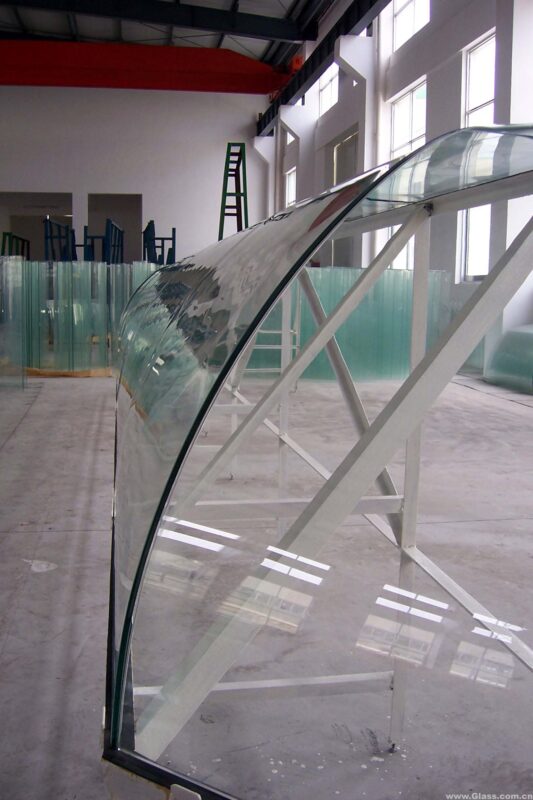

Bent Glass is manufactured by heating flat glass and forming it into a precise curved shape. It combines modern architectural aesthetics with structural performance, making it a popular choice for contemporary building facades, railings, entrances, revolving doors, storefronts, and specialty glass applications.
Curved Glass Is Not Just a Shape. It Is a Complete Glazing System.
Bent glass can be supplied as tempered, laminated, insulated, Low-E, bird-friendly, tinted, ultra clear, or decorative glass systems. The right configuration depends on safety, energy performance, project radius, installation method, and architectural design intent.
Why Choose Bent Glass?
Bent glass helps architects and designers create smooth continuous curves while maintaining glass performance requirements.
Modern Architectural Appearance
Creates smooth curved forms for facades, entrances, retail spaces, and landmark buildings.
Custom Radius Control
Panels can be formed to match project-specific radius and design requirements.
Safety Glass Options
Available as tempered bent glass or bent laminated glass for demanding applications.
Energy-Efficient Systems
Bent glass can be incorporated into insulated glass units with Low-E performance.
Bird-Friendly Options
Curved facades can include bird-friendly glass solutions when required by projects.
Premium Project Value
Ideal for hotels, luxury retail, observation decks, and high-profile architectural projects.
Technical Specifications
| Specification | Details |
|---|---|
| Available Thickness | 4mm – 19mm |
| Tempering Available | ✓ Yes |
| Laminating Available | ✓ Yes |
| Insulated Glass Available | ✓ Yes |
| Custom Radius Available | ✓ Yes |
| Low-E Compatible | ✓ Yes |
| Bird-Friendly Options | ✓ Yes |
Need-to-Know
| Need | Answer |
|---|---|
| Custom radius available? | ✓ Yes |
| Safety glass options? | ✓ Yes |
| Large architectural panels? | ✓ Yes |
| Insulated configurations? | ✓ Yes |
| Low-E performance available? | ✓ Yes |
| Suitable for curtain walls? | ✓ Yes |
Common Bent Glass Types
Different projects require different glass compositions and performance levels.
Bent Glass Can Be Combined With Advanced Glass Systems
For modern facades and high-performance buildings, bent glass can be combined with laminated safety structures, Low-E coatings, insulated glass units, tinted glass, ultra clear glass, ceramic printing, or bird-friendly patterns.
Types of Bent Glass
| Type | Description |
|---|---|
| Cylindrical Bent Glass | Single-radius curved glass for facades, doors, railings, and architectural panels |
| Spherical Bent Glass | Multi-directional curved glass for complex specialty applications |
| J-Bent Glass | Architectural feature elements and specialty curved components |
| Bent Laminated Glass | Enhanced safety, post-breakage integrity, and security performance |
| Bent Insulated Glass | Energy-efficient curved facade and window systems |
Typical Applications
Bent glass is widely used in architectural projects where straight glass cannot achieve the design intent.
Choosing the Right Bent Glass System
The correct specification depends on safety, performance, appearance, and installation requirements.
| Project Requirement | Recommended Solution |
|---|---|
| General curved architectural panels | Tempered Bent Glass |
| Railings and balustrades | Bent Laminated Glass |
| Energy-efficient facades | Bent Insulated Glass with Low-E |
| Premium clear appearance | Ultra Clear Bent Glass |
| Bird-safe facade projects | Bird-Friendly Bent Glass |
Quick Answers
What is bent glass?
Bent glass is flat glass that has been thermally formed into a curved shape while maintaining optical quality and structural integrity.
Can bent glass be tempered?
Yes. Bent glass is commonly supplied as tempered safety glass for architectural applications.
Can bent glass be insulated?
Yes. Bent glass can be incorporated into insulated glass units for enhanced thermal performance.
